FEVE Aluminum composite panel ACP is a kind of panel comprises a polyethylene core between two aluminum skin, the front surface is coated with FEVE paints. Its excellent weather resistance is more suitable for the building’s exterior decoration and curtain wall projects, if FEVE compared with PVDF coating, SHUANGOU FEVE ACP can accept more Glossy
-FEVE Aluminum composite panel ACP
SHUANGOU FEVE ACP Product introduction

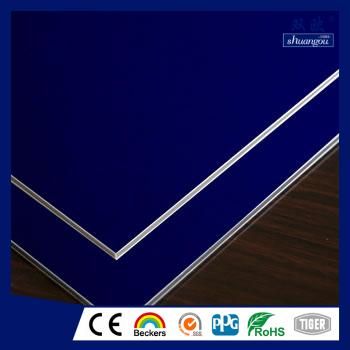

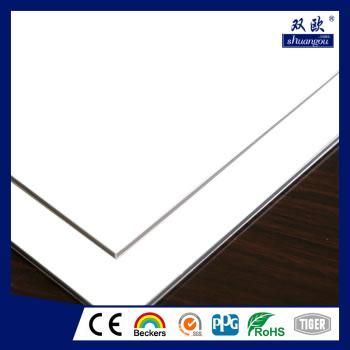

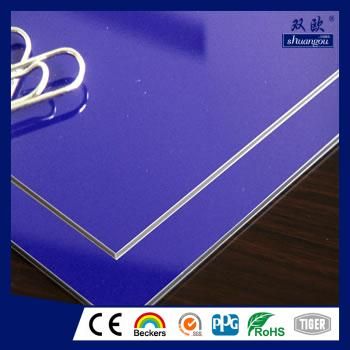

FEVE Aluminum composite panel ACP is a kind of panel comprises a polyethylene core between two aluminum skin, the front surface is coated with FEVE paints. Its excellent weather resistance is more suitable for the building’s exterior decoration and curtain wall projects, if FEVE compared with PVDF coating, SHUANGOU FEVE ACP can accept more Glossy colors, It can make the exterior wall of the building more beautiful and colorful.
SHUANGOU FEVE ACP Raw Materials
Aluminum skin material: high strength aluminum alloy 1 Series or 3 Series sheets
Plastic Core: Non-toxic low-density polyethylene (LDPE) core
Surface paint: FEVE coating
SHUANGOU FEVE ACP Specification
Width: 1220mm, 1250mm, 1500mm.
Length: According to customer needs, even up to more than10 meters. (Suitable length can be selected according to container size.)
Panel thickness: 3mm~6mm, 4 mm is suitable for external wall.
Aluminum skin thickness: 0.21mm~0.50mm, 0.30mm and 0.40mm is suitable for external wall.
Standard size: 1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10')
Colors: Provide SHUANGOU color chart with more than 50 colors，Color sample color matching provided by customers is acceptable.
SHUANGOU FEVE ACP Physical Parameter
Unit Weight (ASTM D792): T4mm=5.5kg/m²
Thermal Expansion (ASTM D696): 24-28
Thermal Deformation Temperature (ASTM D648): 115℃
Thermal Conduction (ASTM D976): 0.102kcal/m.hr℃
Impact Resistance (ASTM D732): 1.640kgf
Adhesive Strength (ASTM D903): 0.77kg/mm
Flexural Elasticity (ASTM D790): 4030kg/mm²
Shear Resistance (ASTM D732): 2.7 kgf/mm²
Wind-pressure Resistance (ASTM E330): PASSED
Properties Against Water (ASTM E331): PASSED
SHUANGOU FEVE ACP Advantage
Why choose SHUANGOU FEVE Aluminum composite panel ACP?
Excellent weather resistance.
Easy to maintain.
Easy to process.
Easy to install.
Lightweight and colorful.
Non-toxicity and safety.
Accept glossy colors
Excellent coating property.
SHUANGOU FEVE ACP Applications
SHUANGOU FEVE ACP Widely used in exterior cladding & curtain wall projects of high-grade buildings, such as bank, hospital, airport, subway, railway station, business office building, etc.
SHUANGOU FEVE ACP Packing
General packaging: After stacking SHUANGOU FEVE ACP, the panels are packed with plastic steel strips, and the surface is covered with cardboard.
Advanced packaging: Use high-quality wood pallets (fumigation pallets if there is a special need), and use three plywood to pack into wooden boxes on four sides after stacking SHUANGOU PVDF Aluminum composite panel ACP.
SHUANGOU aluminum composite panel is a kind of new-fashioned composite material through serial processing, with the paint coating aluminum sheet as the surface after surface preparation and the high pressure low density polyethylene compound as the core layer, the conformation of which has excellent acid, alkali and corrosion resistance to be the most preferred material for modern curtain wall decoration and interior design.
The brand management concept of “SHUANGOU product, warranty for the quality” we offer is not only our goal, but also an obligation. We conform to the professional standard of “novelty, aesthetics, energy conservation, environmental protection and safety” by setting up a fashionable and natural image for the brand, in providing top-ranking after-sale services and in achieving the success and reputation of the brand with sincerity and wisdom.
1. Prevent the product from water during transportation, processing and installation for fear that it may damage the aluminum panel.
2. Keep the product laid flat no matter in transportation or in storage. If side laid, the panels should be kept vertical to the plane, compact to each other. The storage period should not be over 6 months.
3. This product is suitable for processes of sawing, cutting, edge planning, riveting, grooving, bending and spray painting.
4. V-shaped cutting tools should be applied in grooving, the width of the tank bottom is2.5-4mm, the blade should be sharp, the rotating speed is 2000-3000 rotations/min, the cutting feed should be 3-5 m/min to prevent the peeling off of the aluminum panel caused by the melting of the adhesive by over heating; 0.3-0.5mm thick plastic core should be kept between the lowest point and the aluminum panel according to the aluminum thickness. The distance between the centerline and the edge of the aluminum plastic panel should be bigger than 20mm.
5. Use uniformed force and one shot modeling in flanging instead of abrupt force and repeated bending.
6. Don’t fill in silica gel when it’s raining
7. Use bending tools in the decoration of cambered surface. Bend the aluminum plastic panel slowly into required curved surface with curvature radius not less than 20cm.
8. Mount the panel according to the arrow direction in order to prevent visual chromatic aberration by the light reflection.
9. Don’t peel off the protective film before the completion of the construction to prevent scratching to the surface coating film; peel off the protective film within 45 days after the completion.
10. Don’t apply resin or hardened adhesives in the mounting of the internal wall plate, otherwise there’ll be unflatness. It is better to use plywood or other related materials as the bottom board of the internal aluminum plastic wall plate instead of sticking the aluminum plastic panel directly to the cement wall.
11. Framework of corresponding dimensions should be inner lined after flanging of the aluminum plastic panel with the dimension not over 600mm*600mm. the internal wall plate should be used indoors instead of outdoors.
12. Neutral detergent or medical alcohol can be applied softly and gently in cleaning of the contaminated panel surface. Chemical solvents or acid & alkali solutions like butanone, acetone, xylene and lacquer thinner are prohibited.
