Brushed Aluminum composite panel ACP

-Brushed Aluminum composite panel ACP

SHUANGOU Brushed ACP Product introduction

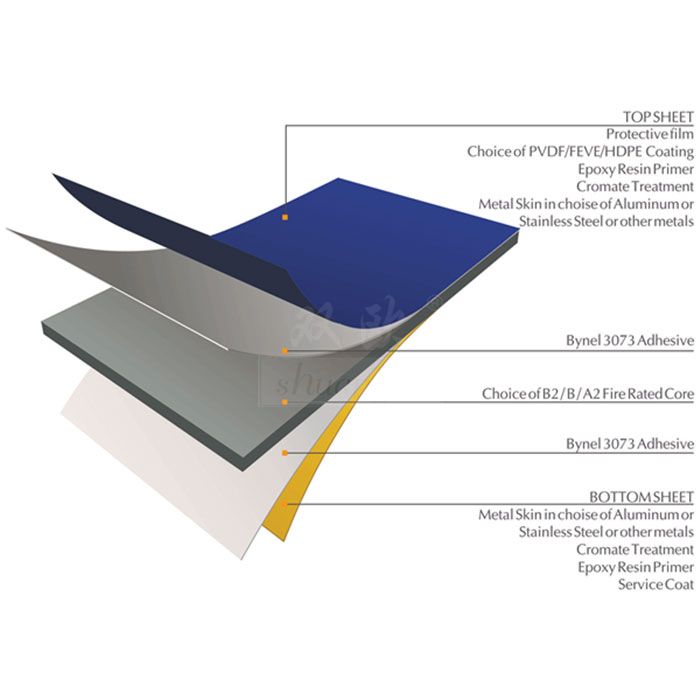

Brushed Aluminum composite panel ACP is a kind of panel comprises a polyethylene core between two aluminum skin, the front surface is brushed finish. Brushed surface can highlight metal texture more. And the Brushed surface also can use colorful paint, such as silver, gold, black, red and so on.

SHUANGOU Brushed ACP Raw Materials

Aluminum skin material: high strength aluminum alloy 1 Series or 3 Series sheets

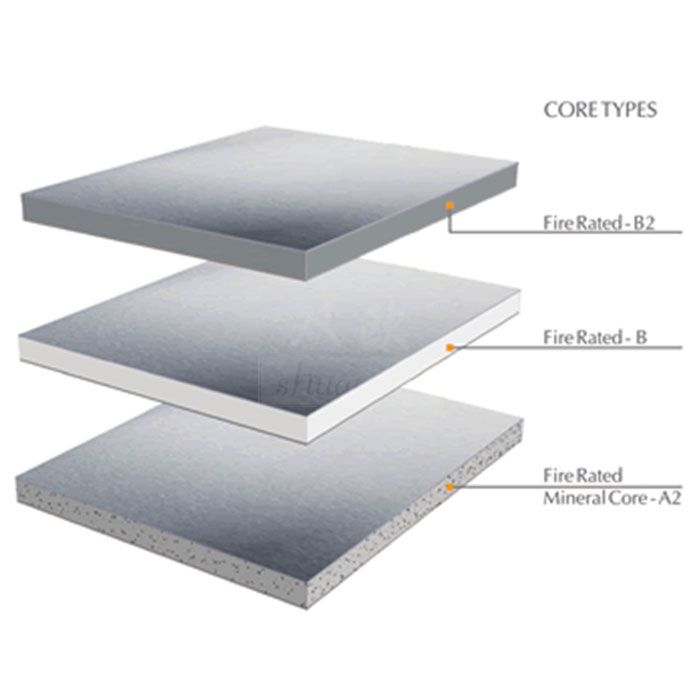

Plastic Core: non-toxic low-density polyethylene (LDPE) or Fire-resistant (FR) core

Surface paint: Brushed finish with PE or PVDF paint

SHUANGOU Brushed ACP Specification

Width: 1220mm, 1250mm, 1500mm.

Length: According to customer needs, even up to more than10 meters. (Suitable length can be selected according to container size.)

Panel thickness: 3mm~6mm, 4 mm is suitable for external wall.

Aluminum skin thickness: 0.21mm~0.50mm, 0.30mm and 0.40mm is suitable for external wall.

Standard size: 1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10')

SHUANGOU Brushed ACP Dimensional Tolerances

Panel Thickness: ±0.20 mm

Aluminum skin thickness: ±0.02 mm

Width: ±2.0 mm

 Length: ±3.0 mm

Diagonal: ±5.0 mm

Thermal Expansion: 2.40 mm/m@100℃ Temp difference

SHUANGOU Brushed ACP Advantage

Why choose SHUANGOU Brushed Aluminum composite panel ACP?

Easy to maintain.

Easy to process.

Easy to install.

Lightweight.

Non-toxicity and safety.

Natural design & Smooth surface.

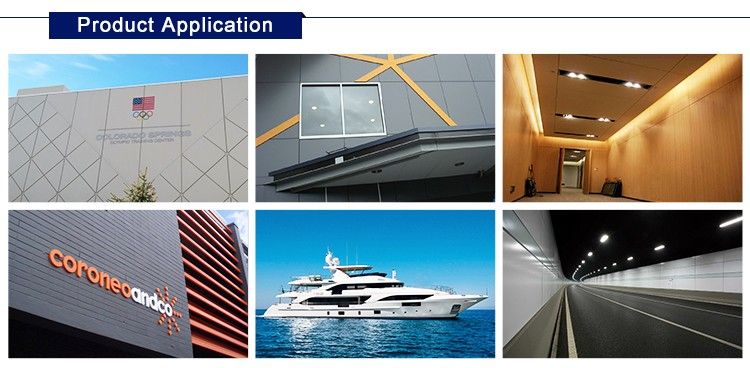

SHUANGOU Brushed ACP Applications

SHUANGOU Brushed ACP Widely used in High grade interior and exterior decoration wall, Brushed surface Can show the metal texture of aluminum more.

SHUANGOU Brushed ACP Packing

General packaging: After stacking SHUANGOU Brushed ACP, the panels are packed with plastic steel strips, and the surface is covered with cardboard.

Advanced packaging: Use high-quality wood pallets (fumigation pallets if there is a special need), and use three plywood to pack into wooden boxes on four sides after stacking SHUANGOU Brushed ACP.
