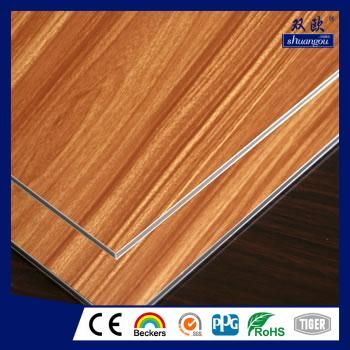

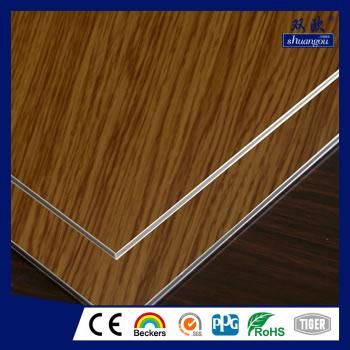

SHUANGOU Fireproof Aluminum composite panel ACP is a kind of panel made of fireproof plastic core between two aluminum skin, This is a kind of building material with complex environmental protection requirements，because of the fireproof plastic core, the panel can reach B1 FR Grade with the FR property test of GB/T8624-2006/2012, ASTM-E84.
SHUANGOU aluminum sandwich panel is kind of panel made of fireproof plastic core between two aluminium skin, This is a kind of building material with complex environmental protection requirements，because of the fireproof plastic core, the panel can reach B1 FR Grade with the FR property test of GB/T8624-2006/2012, ASTM-E84 and EN13501.
-Aluminium skin material: high strength aluminium alloy 1 Series or 3 Series sheets
-Plastic Core: Non-toxic Fire-resistant (FR) core
-Surface paint: Polyester or PVDF Kynar coating
-Width: 1220mm, 1250mm, 1500mm.
-Length: According to customer needs, even up to more than10 meters. (Suitable length can be selected according to container size.)
-Panel thickness: 3mm~6mm, 4 mm is suitable for the external wall.
-Aluminium skin thickness: 0.21mm~0.50mm, 0.30mm and 0.40mm are suitable for external wall.
-Standard size: 1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10')
-Colors: Provide SHUANGOU color chart with more than 50 colors，Color sample color matching provided by customers is acceptable.
-China: GB/T8627, GB/T8624-2006/2012, GB-T17748-2016 B1
-Germany: DIN 4102 (B1 degree)
-U.S.A: ASTM E84. (A degree)
-France: NFF16-101 (M1, M2 degree)
-EUROPE: EN13501 (B1 degree)
-U.K.: BS-476 (1 degree)
-A degree: None-combustion
-B1 degree: Hard-combustion, Self-extinguishment
-B2 degree: Combustion
-B3 degree: Combustible
-Minimum value of remaining length after burning (mm) > 0 (Result: 480)
-Average value of remaining length after burning (mm) ≥ 150 (Result: 160)
-Temperature of smoke (℃) ≤ 200 (Result: 78)
-Height of fire (mm) ≤150 (Result: 12)
-Grade of smoke density < 75 (Result: 9)
The overall hollow sandwich structure of the composite material overcomes the shortcomings of the traditional honeycomb, foam core material and other sandwich composite materials that are easy to layer and have poor impact resistance, and:
1. Lightweight, high strength, high specific strength and specific modulus;
2. Three-dimensional woven integral molding, resistant to delamination and peeling;
3. Strong structural design (height, weight, fiber type, spatial form, etc.);
4. The hollow structure can be filled, embedded, foamed (foam, probe, wire, etc.);
5. Easy to compound, film profiling, high compounding efficiency;
6. Heat preservation, sound insulation, flame retardant and wave penetration;
7. Hard-burning, FR B1 Grade;
8. Excellent coating property;
9. Aluminum composite panel sheet easy to maintain, process, install.
SHUANGOU FR (Fireproof) Aluminum composite panel ACP Widely used in exterior cladding & curtain wall projects of high-grade buildings, such as bank, hospital, airport, subway, railway station, business office building, etc. It also is widely used in rail transportation, boats, aviation, aerospace, wind energy, construction, double-layer storage tanks and other fields.
General packaging: After stacking aluminum honeycomb panels, the panels are packed with plastic steel strips, and the surface is covered with cardboard.
Advanced packaging: Use high-quality wood pallets (fumigation pallets if there is a special need), and use three plywood to pack into wooden boxes on four sides after stacking SHUANGOU FR (Fireproof) ACP.
