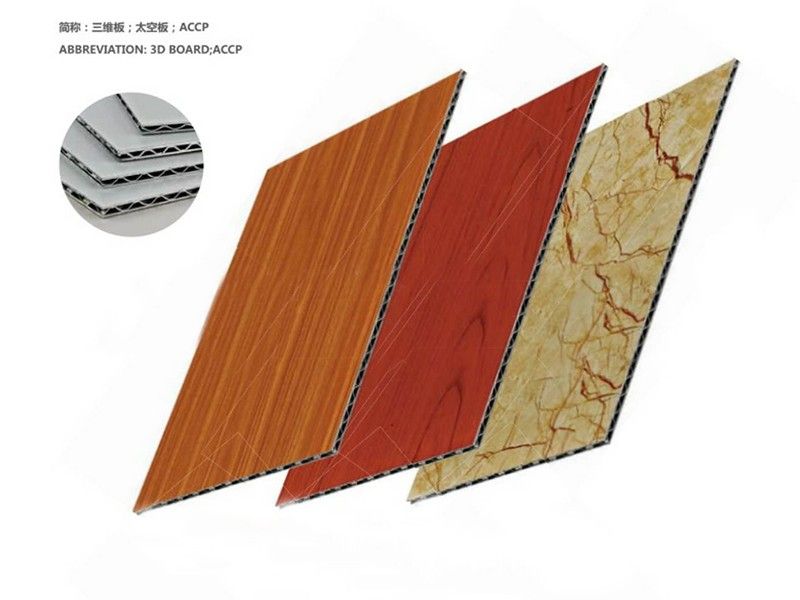

Product introduction of SHUANGOU Aluminum core structural panel
SHUANGOU Aluminum core structural panel, also called aluminum core composite panel, is an improved decorative panel. It does not need the expensive unit price of aluminum honeycomb panel, but it is stronger and lighter than aluminum honeycomb panel.

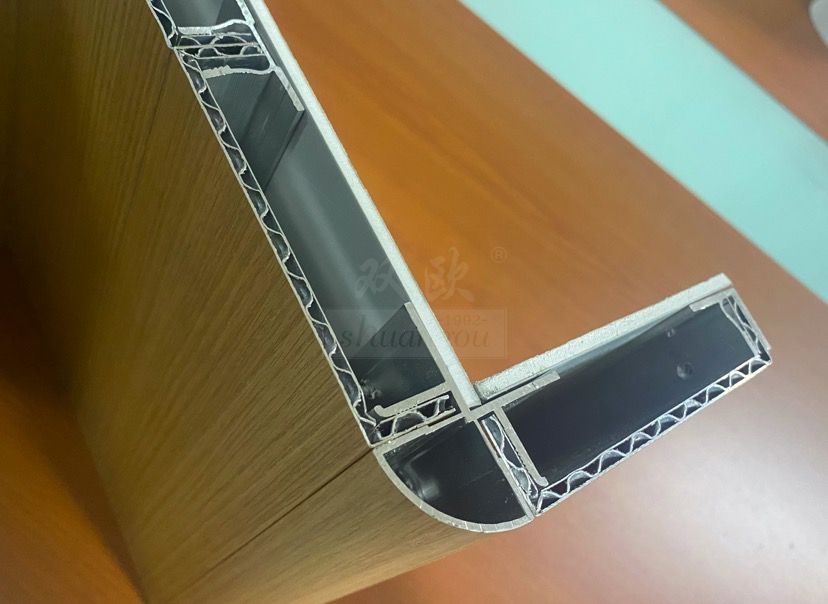

It is made of all metal material, without plastic composition, 100% environmental protection and fire prevention, and has the characteristics of simple processing of aluminum composite panel. The patented three-dimensional physical structure has less aluminum consumption and diversified appearance effects. It can be perfectly displayed whether it is imitation stone grain, imitation wood grain or brush and mirror surface.

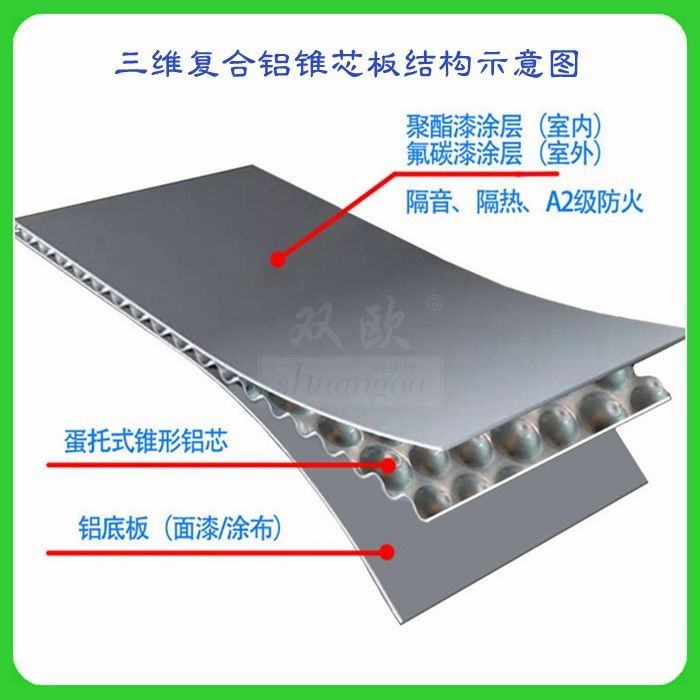

Materials of SHUANGOU Aluminum core structural panel
Aluminum sheet material: high strength aluminum alloy 1 series or 3 series coil

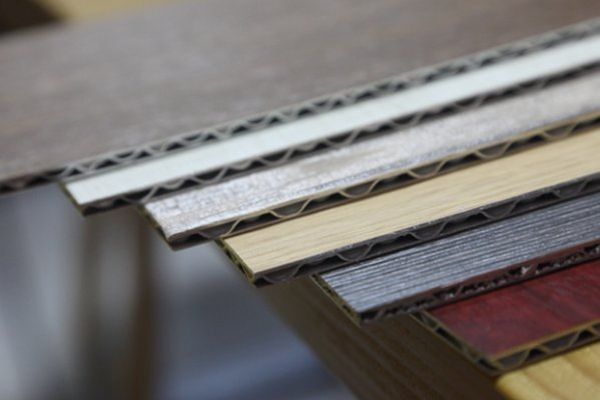

Conical core: it adopts O-state 1 series aluminum alloy and three-dimensional physical structure conical core
Surface style: high performance fluorocarbon coating, imitation stone grain film, imitation wood grain film, wire drawing, mirror, etc.
Specification of SHUANGOU Aluminum core structural panel
Length: it can be up to 10 meters or more according to the needs of customers (the appropriate length can be selected according to the size of transportation materials and engineering needs.)
Panel thickness: 3mm ~ 6mm.
Thickness of aluminum skin: 0.50mm ~ 0.70mm
Color: provide more than 50 kinds of SHUANGOU color cards, which can accept color samples and color matching provided by customers, and more than 3000 kinds of wood grain film, stone grain film and other effects.
Unit weight: 4mm panel weight is about 3.6kg/m2

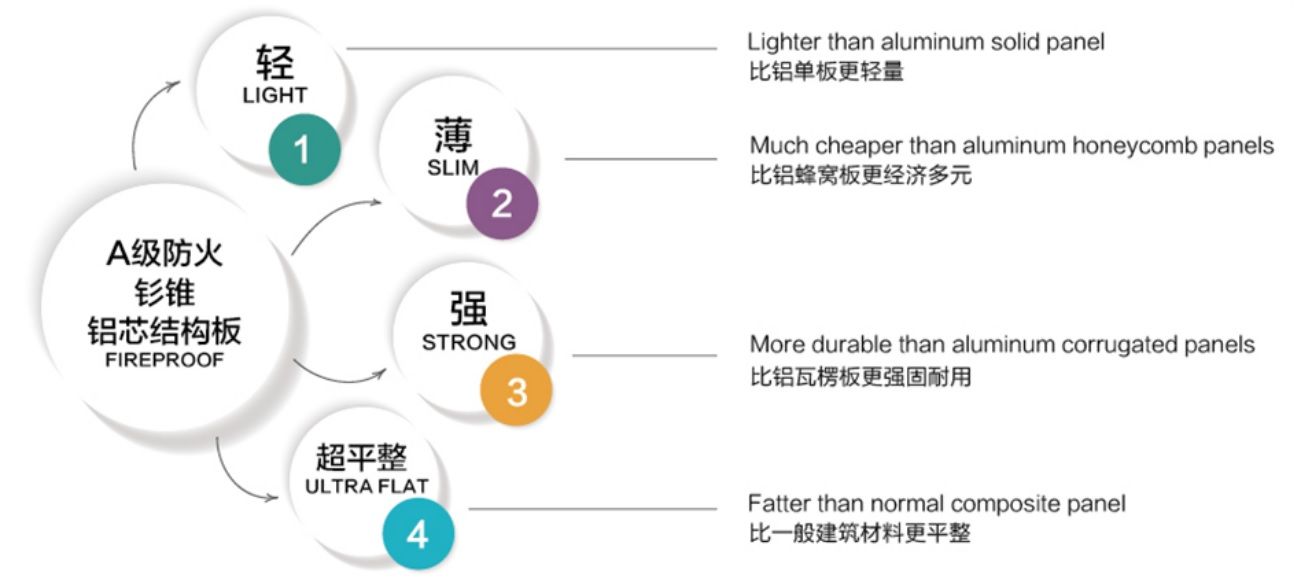

Advantages of SHUANGOU Aluminum core structural panel
Why choose SHUANGOU Aluminum core structural panel?
Excellent weather resistance, easy installation, light and colorful, non-toxic, environmental protection and safety.
Excellent coating performance, high fire rating and high recovery rate.
Application of d SHUANGOU Aluminum core structural panel
SHUANGOU Aluminum core structural panel is widely used in high-grade buildings such as banks, hospitals, airports, subways, railway stations, business office buildings and so on.
SHUANGOU Aluminum core structural panel packaging
General packaging: after the double European aluminum core structural panels are stacked, they are packaged with plastic steel belt, and the surface is covered with card panel.

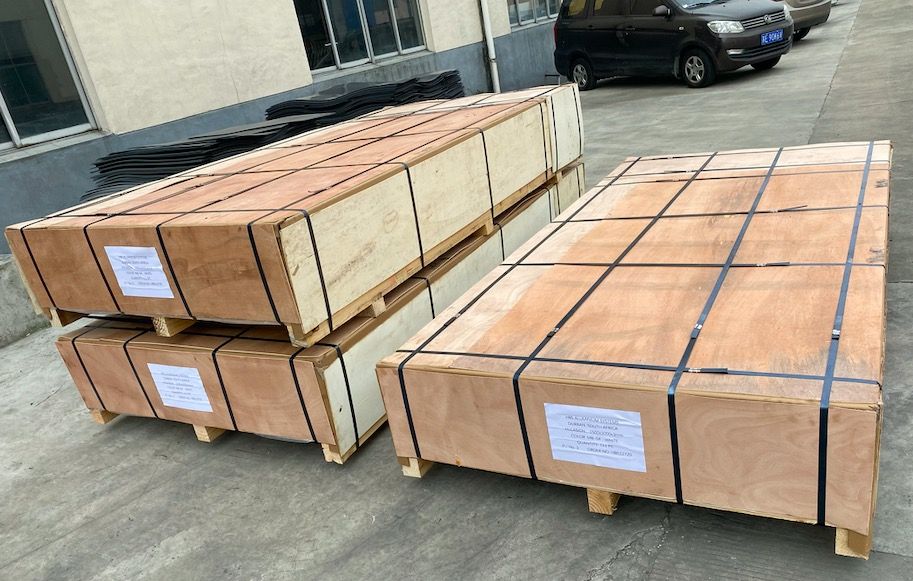

Advanced packaging: high quality wooden pallets (fumigation pallets shall be used if there are special needs). After the SHUANGOU Aluminum core structural panel are stacked, they shall be packed into four-sided wooden boxes with three layers of plywood.
